Features
Equipped with 24 pcs UCS2903B driver chip, SPI digital signal transmission, fast response speed and smooth color transition.
- Compatible with MiBoxer SPI controller series
- Dim dynamic lighting via SPI controller and remote
Product Parameters
| Model No. | RL48-SPI |
|---|---|
| Input Voltage | AC100~240V 50/60Hz |
| Power | 48W |
| Luminous Flux | R:260 LM, G:720 LM, B:120LM |
| Input Signa | SPI(TTL) 800Kbps |
| SPI Chip | 24 PCS (UCS2903B) |
| IP Rate | IP66 |
| Beam Angle | 15*60° |
| Illumination Distance | >15m |
| Working Temperature | -20~45℃ |
| Housing Material | Die-cast aluminum, stalinite |
Waterproof rate IP66

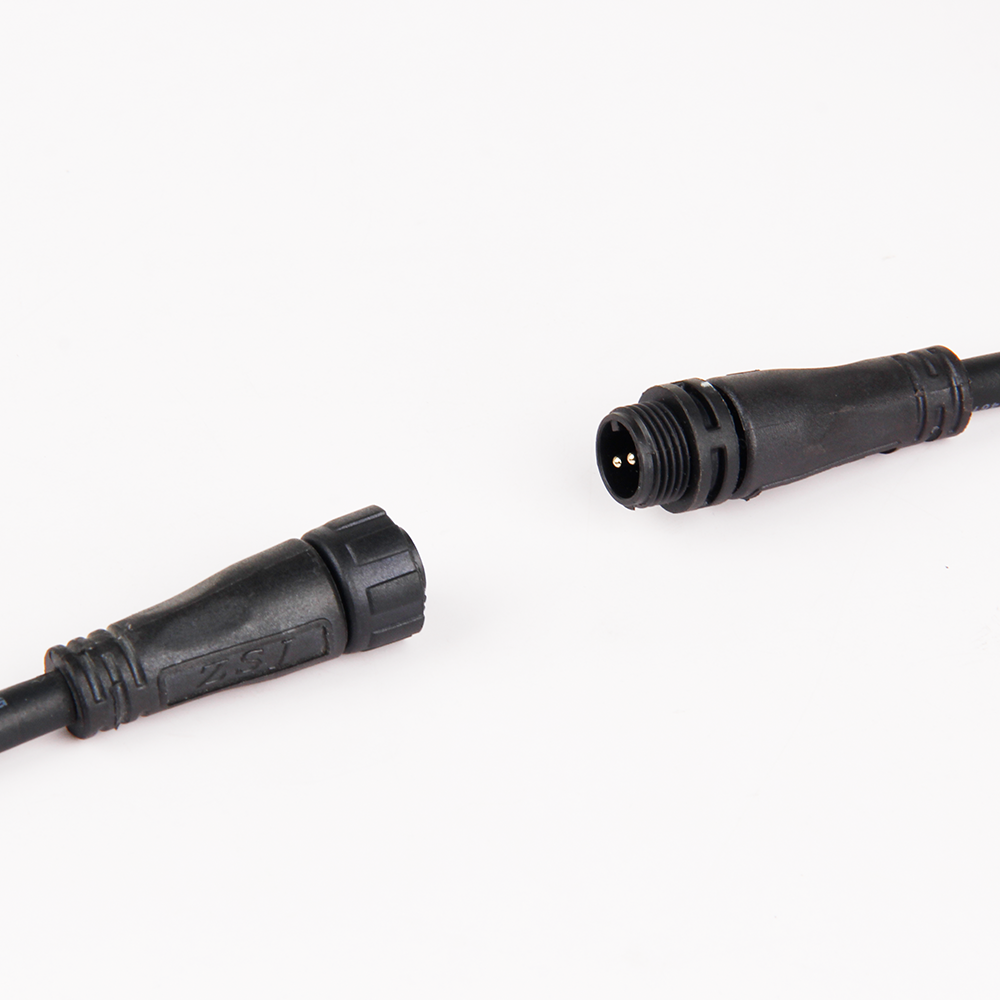

Silicone rubber sealing make sure the excellent waterproofness and safety usage

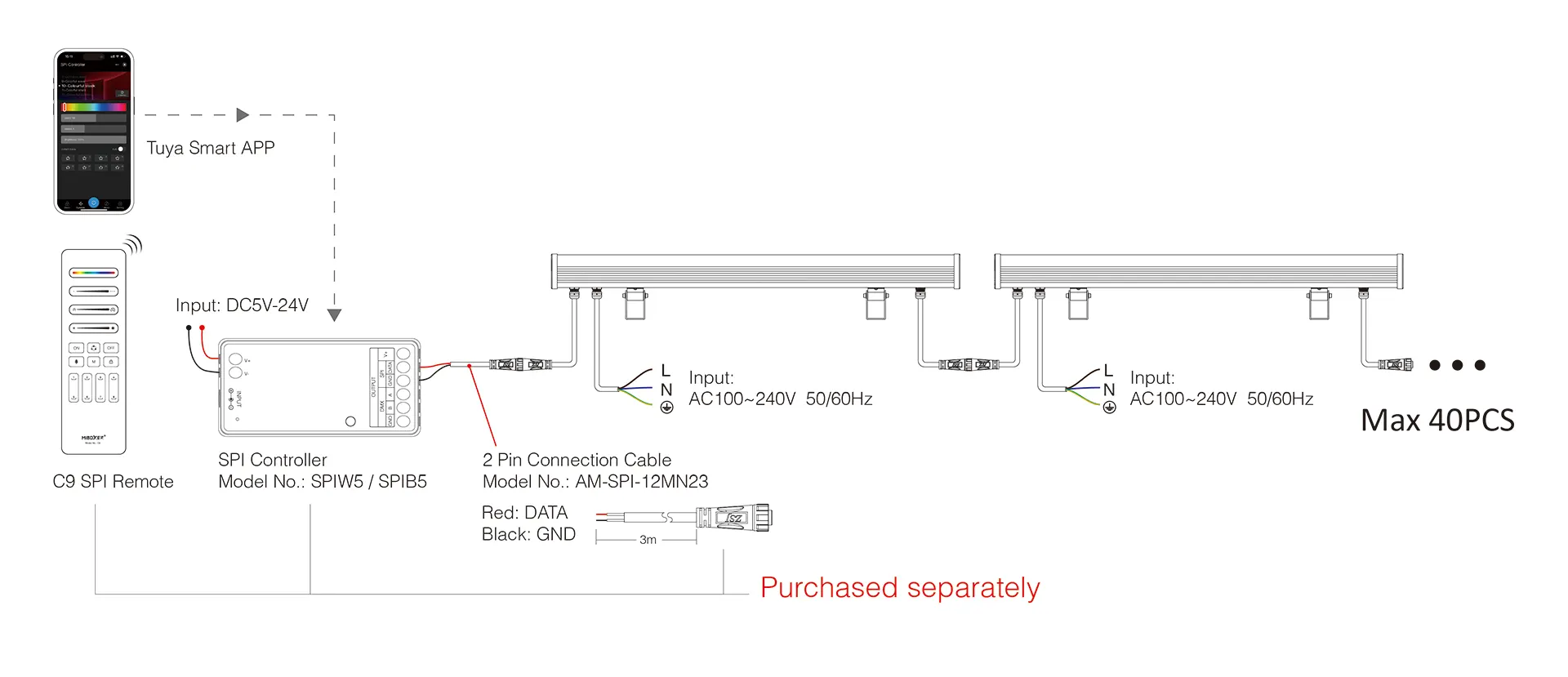

Application Diagram
It needs to be used with SPI controller (Purchased separately)
Attention:

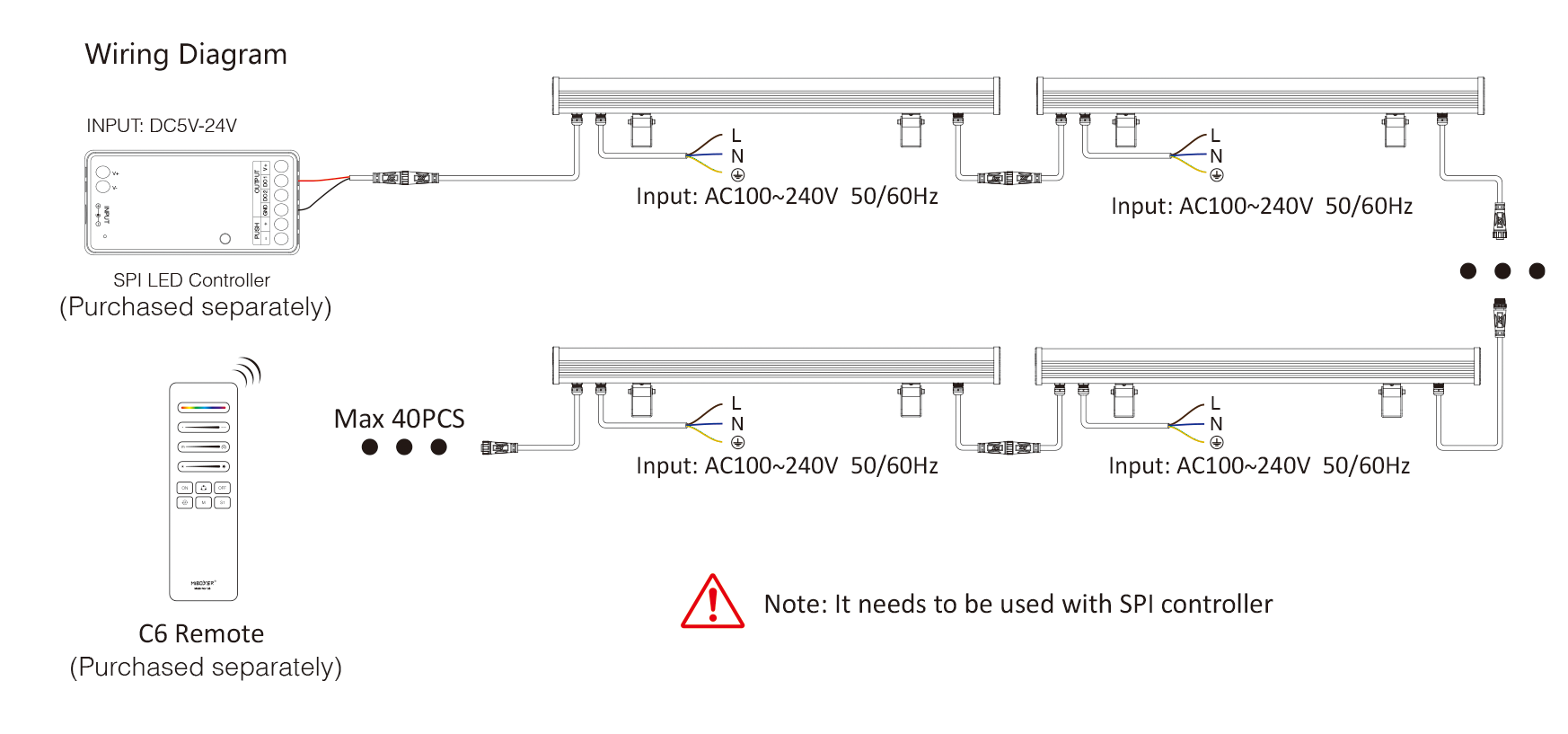

Only one SPI signal input cable (Model: AM-SPI-12MN23) is required for a series-connected group of wall washer lights, supporting up to 40 units.
