Features
SPIW5 5 in 1 SPI+DMX BLE+2.4G LED controller is built in SPI/DMX dual communication protocol, compatible with DC5-24V input, it’s special controller for SPI LED strip light. The controller support BLE+2.4G wireless transmitting technology
Setting different features like adjust different modes, color, brightness and change dynamic illumination via TUYA SMART APP or C9, B9 remote.
- 5 in 1 LED controller, single color/CCT/RGB/RGBW/RGBCCT
- Color, pixel points, speed, static mode and dynamic mode dimmable
- Dynamic mode : 28 kinds of white color for selection, 80 kinds of RGB color for selection, all modes can dim color, brightness, width and speed.
- 8 kinds of music mode work with built-in microphone or smart phone microphone
- Freely switching dynamic and music mode
- Setting boot animation via TUYA SMART APP
- Output signal : SPK(TTL) 800Kbps, DMX: 250Kbps, 500Kbps, 750Kbps
- Have DND mode, usually used for power failure area to save power
Parameters

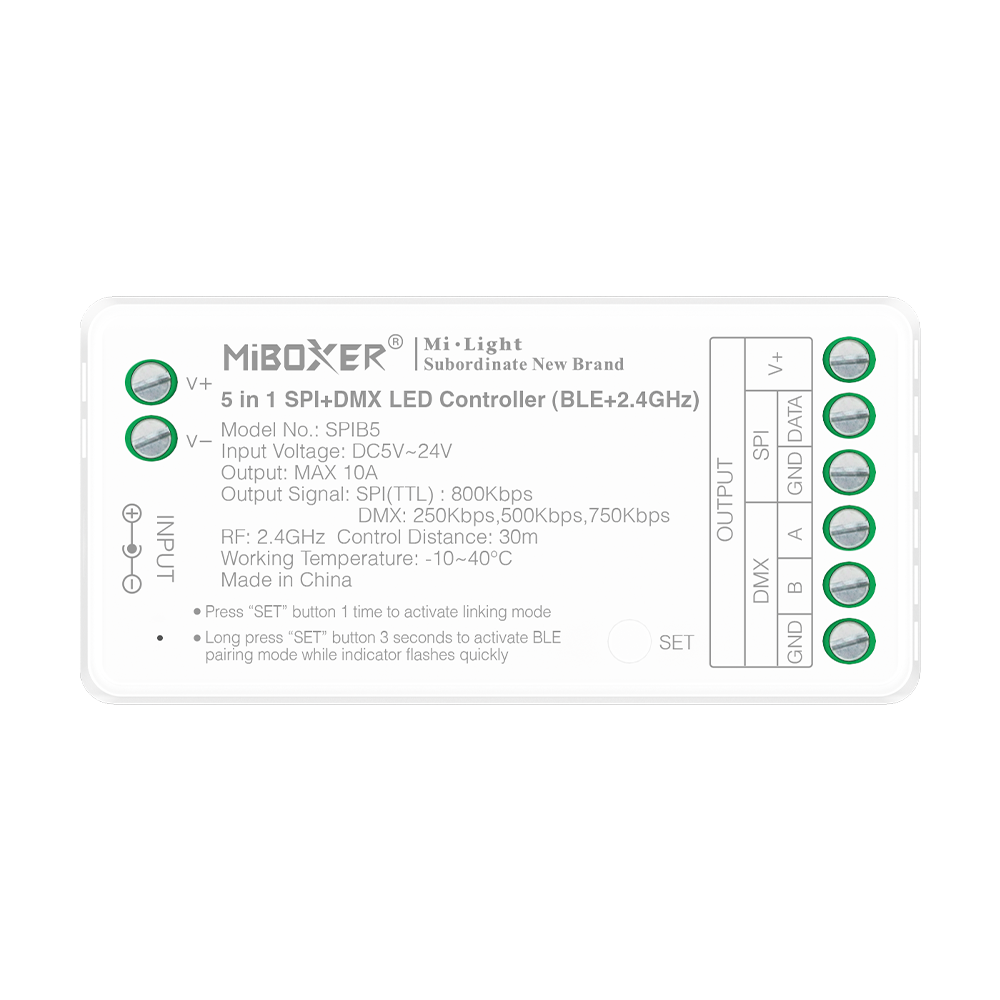

| Product Name: | 5 in 1 SPI+DMX LED Controller (BLE+2.4G) |
|---|---|
| Model No.: | SPIB5 |
| Input Voltage: | DC5V~24V |
| Output Current: | Max 10A |
| Output signal: | SPI(TTL) 800Kbps (Max 1024 Pixel) DMX: 250Kbps(Max 256 Pixel) DMX: 500Kbps(Max 512 Pixel) DMX: 750Kbps(Max 768 Pixel) |
| Standby current: | 20mA |
| Protocol: | BLE + 2.4GHz RF |
| Control Distance: | 30m |
| IP Rate: | IP20 |
|---|---|
| Working Temperature: | -10~40°C |

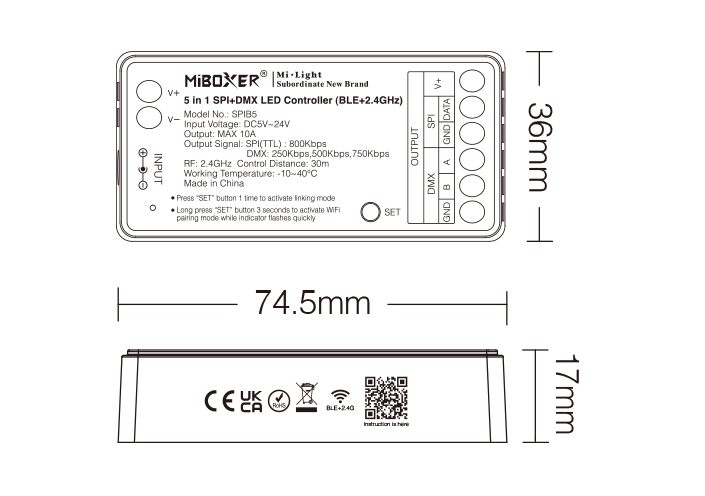

| Dimension: | 74.5*36*17mm |
| EMC Standard (EMC): | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety Standard (LVD): | EN 62368-1; 2020+A11;2020 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
| Warranty: | 5 Years |

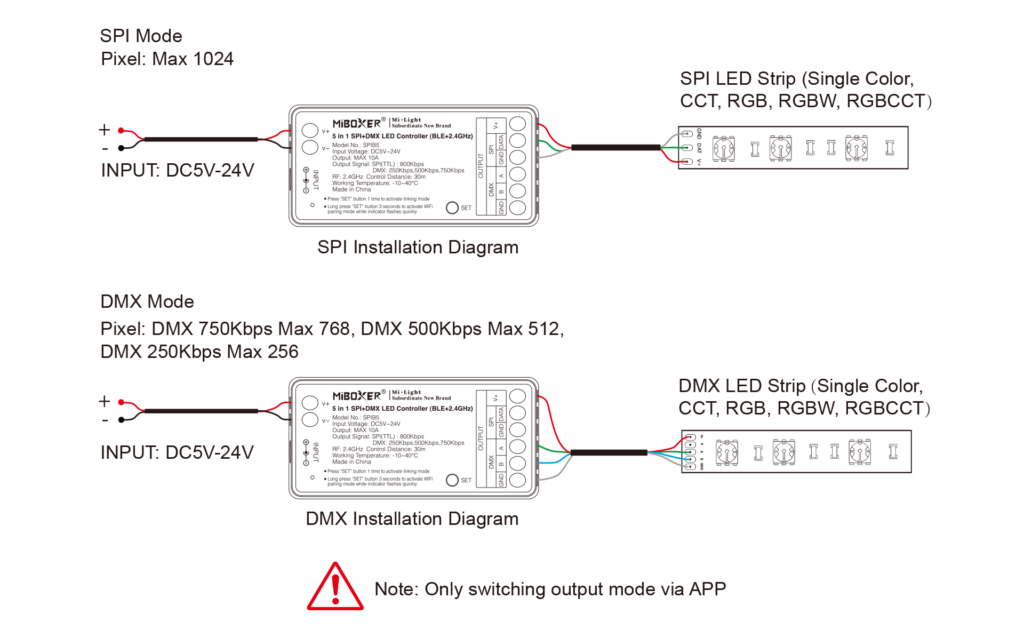

Connection Diagram

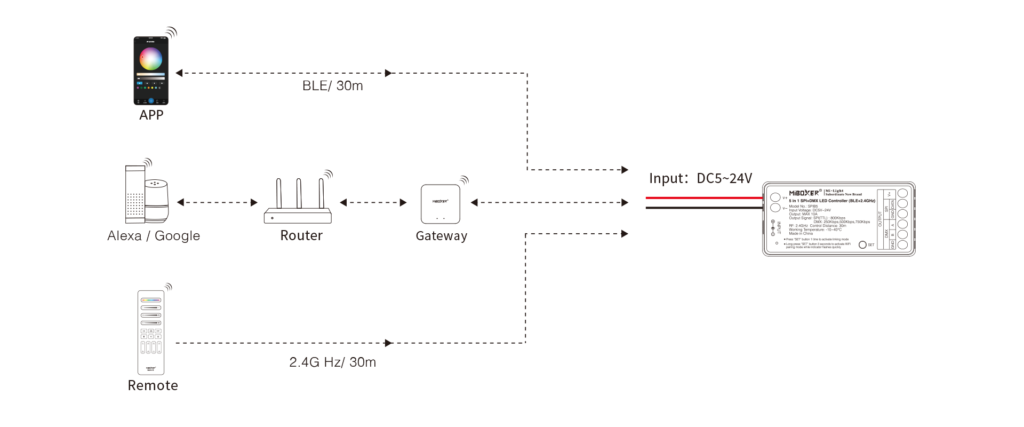

APP control
