Features

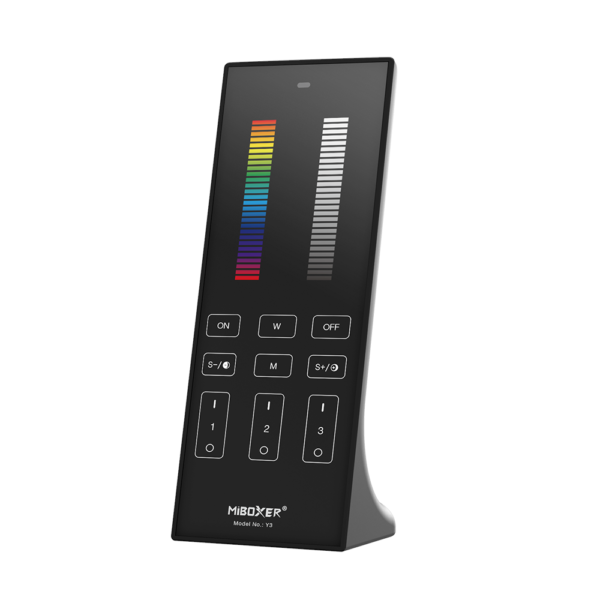

Y3 is vertical remote for RGB+CCT controller,it’s soft and matte touch glass, scratch-resistant and none fingerprint. 2.4Ghz wireless transmitting technology with fast speed and stable signal with best performance for anti-interference.
Smart control solution to dim brightness,color temperature, RGB, saturation,dynamic mode and speed for commercial lighting, hotel lighting and home lighting application
- RGB/CCT/brightness dimmable
- 2.4Ghz wireless transmitting technology
- Support Miboxer/Milight 2.4Ghz controller series
- Control Distance:30m
- Working with multi devices at the same time
- Vertical designing with non-slip holder
Parameters
| Product Name: | RGB+CCT vertical remote |
|---|---|
| Model No.: | Y3 |
| Working Voltage: | 3V (AAA*2PCS) |
| Standby Power Consumption: | 15μA |
| Transmitting Power: | 6dBm |
| RF: | 2.4GHz |
| Modulation Method: | GFSK |
| Control Distance: | 30m |
| Working Temperature: | -10~40°C |
|---|---|
| EMC Standard (EMC): | ETSI EN 301 489-1 V2.2.3 (2019-11) ETSI EN 301 489-3 V2.3.2 (2023-01) |
| Safety Standard (LVD): | EN 61347-2-11:2001+A1:2019 EN 61347-1:2015+A1:2021 EN 62493:2015 +A1:2022 |
| Radio Equipment (RED): | ETSI EN 300 440 v 2.2.1 (2018-07) |
| Certification: | CE, EMC, LVD, RED |
