Features
Tiny shell, subtle brilliance, no longer limited by space. Our Mini LED controller uses 2.4G RF wireless transmission technology and supports remote control. One remote can control countless controllers at the same time.
● The product is equipped with DC male and female connectors, making the connection more flexible and convenient.
● 4096 levels smooth dimming, Min brightness 0.1%.
● Dimming Range 0.1%-100%.
● One controller can be paired with 12 remote (Control distance 30m).
● Auto-forwarding: Automatically forward the remote control signal to another controller, making the remote control distance infinite.
● Support do not disturb mode setting, Suitable for areas with frequent power outages to save electricity.
● Supports “Tuya Smart” app control (2.4GHz gateway is needed).
● Support Alexa, Google Assistant, Yandex Alice (2.4GHz gateway is needed).
Parameters
| Product Name: | Wardrobe / Cabinet Light Dimmer |
|---|---|
| Model No.: | CL1R |
| Input Voltage: | DC12V-24V |
| Output Protocol: | PWM Signal |
| Control Signal: | 2.4GHz RF |
| Control Distance: | 30m |
| IP Rate: | IP20 |
| Working Temperature: | -10~40°C |
| Dimming Grayscale: | 4096 Levels |
|---|---|
| Dimming Range: | 0.1%-100% |
| Dimming Curve: | Logarithmic |
| EMC Standard (EMC): | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-3 V2.1.1 |
| Safety Standard (LVD): | EN 61347-1：2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, RED |
| Warranty: | 5 Years |
Support Tuya smart app control (2.4GHz gateway is needed)
Support third party voice control (2.4GHz gateway is needed)

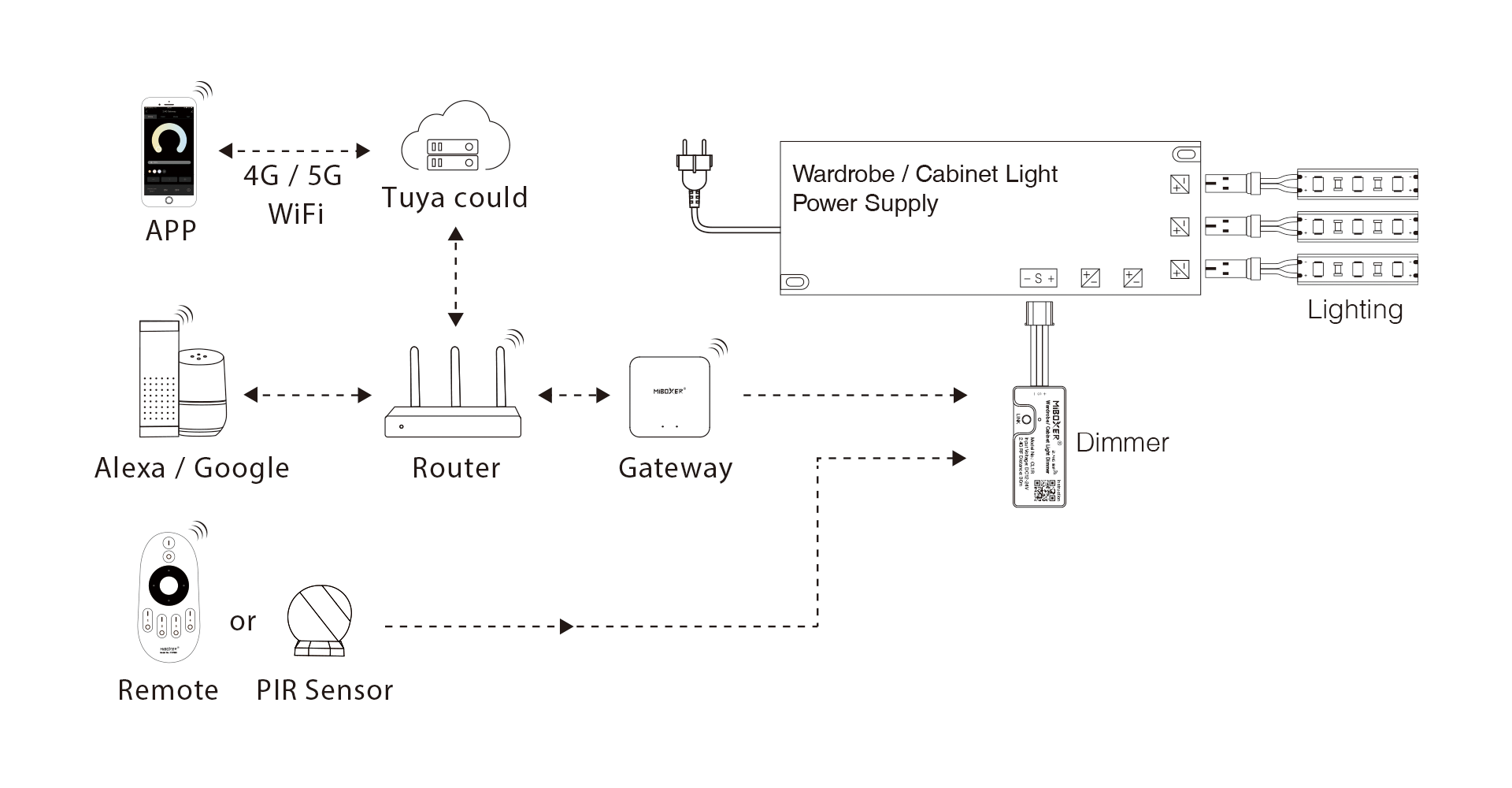

Application Diagram
Compatible with the following remotes
