·Must be used with “2 wire PLC stair light master”

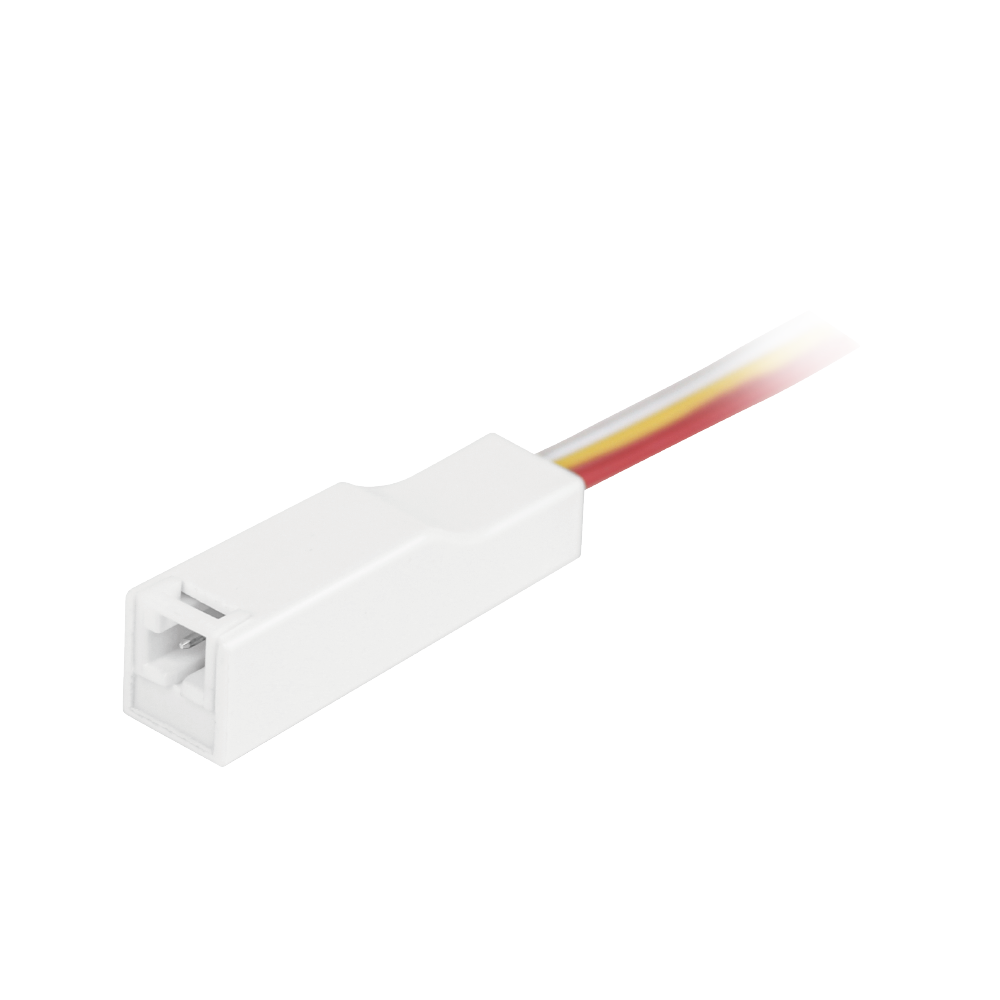

| Products Name | Stair Light Sub-device (Dual White Controller) |
| Model No. | BS-L2C |
| Input Voltage | DC24V |
| Output | 1A/Channel |
| Total Outpu | Max 1A |
| Working Temp | -10~40°C |
| IP Rate | IP20 |
| Tailor Length | Min 25mm |
| Beam Angle | 120° |
| Product Size | 10x10x1000mm |
Connection Diagram (LED strip sold separately)
LED strip ( purchase separately)
