Características
Microwave radar humanity presence sensor combined radar technology with smart calculation and non-contact detecting device. High sensitive ability to detect tiny actions like breathing or chest expansion, reacting static humanity presence.
- Working with smart lighting, turn on light while detecting humanity and turn off light while nobody is detected.
- It can work individually or create networking for multi devices depends on different applications.
- The rest devices will be tiggered if any single one is detected and ensure that the full range can be detected without any blind area.
- The detecting distance from 3m to 8m, it can be set up via DIP switch
Parámetros
| Nombre del producto: | Microwave Radar Human Presence Sensor |
|---|---|
| N º de Modelo.: | HPS1-RF |
| Voltaje de entrada: | CA 100-240 V 50/60 Hz |
| Corriente de salida: | 10A máx. |
| Microwave Frequency: | 24GHz |
| Detection Distance: | 3~8m |
| Protocolo: | radiofrecuencia de 2,4 GHz |
| Distancia de control: | 30m |
| Tarifa IP: | IP20 |
|---|---|
| Temperatura de trabajo: | -10~40°C |
| Estándar EMC (EMC): | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-3 V2.3.2 |
| Norma de seguridad (LVD): | EN 61347-2-11: 2001+A1: 2019 EN 61347-1: 2015+A1:2021 EN 62493: 2015+A1:2022 |
| Equipo de radio (RED): | ETSI EN 300 440 V2.2.1 |
| Certificación: | CE, EMC, LVD, ROJO |

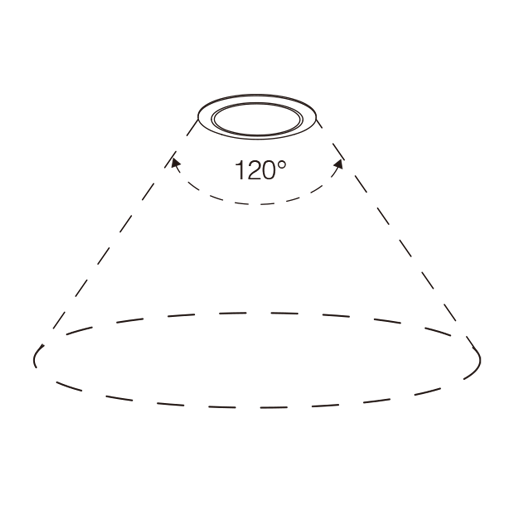

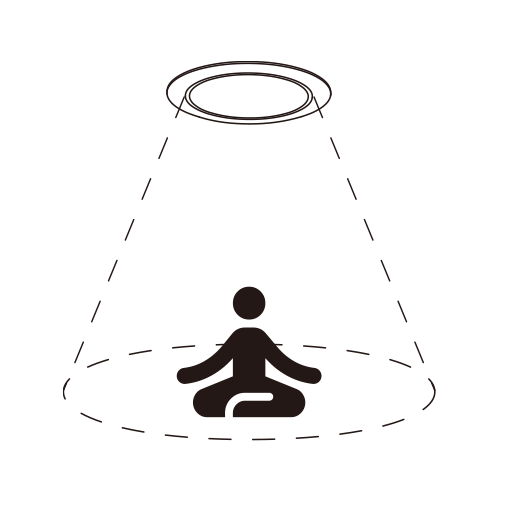

Detecting Angle and distance
Detected even human
body without any actions

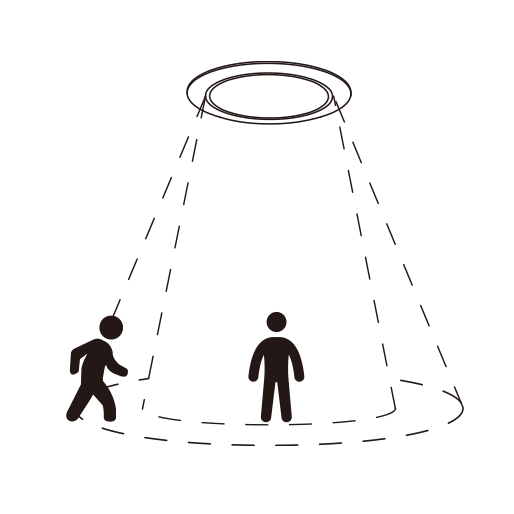

Moving detection radius: 5-8m
Available detection radius: 4-5m
Detection Angle: 120°

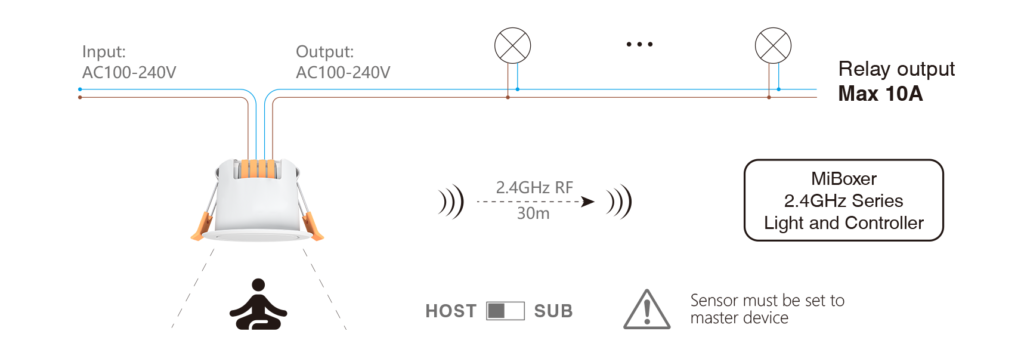

Offline Application Connection Diagram
Usually used for narrow area

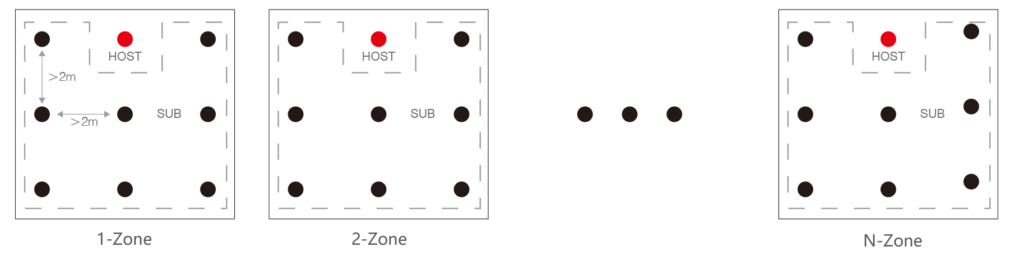

Networking application connection Diagram
Wide Application
Completing configuration in every area and master sensor can be installed in any place
Attention: the distance between two sensors must be over 2m
Attention: the distance between two sensors must be over 2m
