Product Description

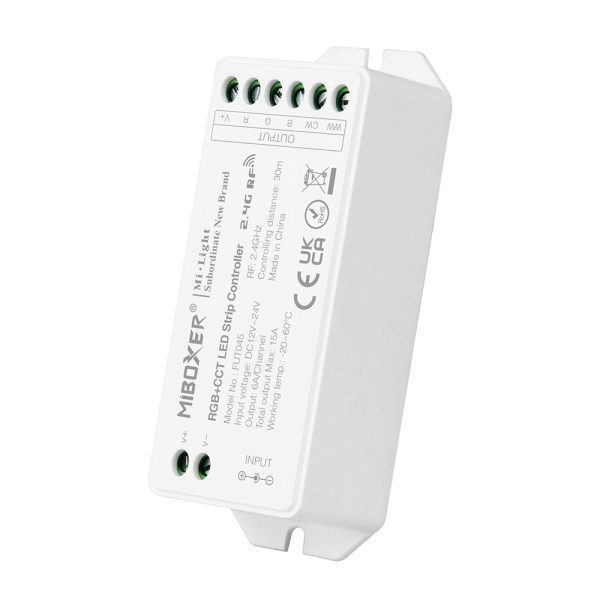

RGB+CCT LED Strip Controller (2.4GHz)
Product Parameters
| Product Name | RGB+CCT LED Strip Controller (2.4GHz) |
|---|---|
| Model No. | FUT045 |
| Input Voltage | DC12~24V |
| Output | 6A/Channel |
| Total Output | Max 15A |
| RF | 2.4GHz |
| Control Distance | 30m |
| IP Rate | – |
| Working Temperature | -10~40°C |
| Output connection | Common anode |
2.4GHz RF Remote control
(Control distance 30m)
16 Millions of colors to choose
Saturation adjustable, meet the diversified lighting
Color temperature adjustable
Brightness adjustable, smooth transition without flicker
Compatible with the following remotes
Signal transmitting
One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.
Modes synchronization
Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.
Lighting Fixtures
Signal transmitting & Modes synchronization
Distance 30m
Lighting Fixtures
. . .
PWM high frequency / low frequency
High frequency / low frequency can be switched
Support smartphone app control and third party voice control (It need 2.4GHz gateway)
