TRI-C1
AC Triac RF+Push Dimmer

• Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps
• Support set up min brightness
• Brightness adjustable
• Support 2.4G remote control, control distance 30m

Available Downloads:
Manual

SKU TRI-C1 Category
TRI-C1
AC Triac RF+Push Dimmer

Product Description

AC Triac Dimmer (2.4G+Push)
2.4G RF Remote dimmer   |   Push dimmer   |   Brightness stepless dimming   |   Trailing edge(ELV) phase-cut   |   Set up min brightness
Product Parameters
Product Name

AC Triac Dimmer (2.4G+Push)

Model No.

TRI-C1

Input Voltage

100-240V~ 50/60Hz

Output Voltage

100-240V~

Output Current

Max 1.36A

Output Power

150W @110V
300W @220V

Dim Method

RF wireless dimming
Push dimming

2.4G RF Control Distance

30m

IP Rate

Working Temperature

-10~40°C



Compatible lighting series

The connected lamp input voltage is 110V, power do not exceed 150W; input voltage is 220V, power do not exceed 300W;

Trailing edge (ELV) phase-cut technology
Over heat / load protection

Have switch to test temperature and over heat / load protection

Breaker Mode

it only support to turn on/off light and can not dim light once this mode had been activated

2.4GHz RF Remote control (Control distance 30m)
Brightness adjustable, smooth transition without flicker

Compatible with the following remotes

Signal transmitting

One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.

Lighting Fixtures
Signal transmitting
Distance 30m
Lighting Fixtures
. . .
Support Push dimmable

Stepless dimming, without any screen flickering

One click:turn on/off lights
Long press:increase/decrease brightness (Long press and release, then long press to change)
Support smartphone app control and third party voice control (It need 2.4GHz gateway)

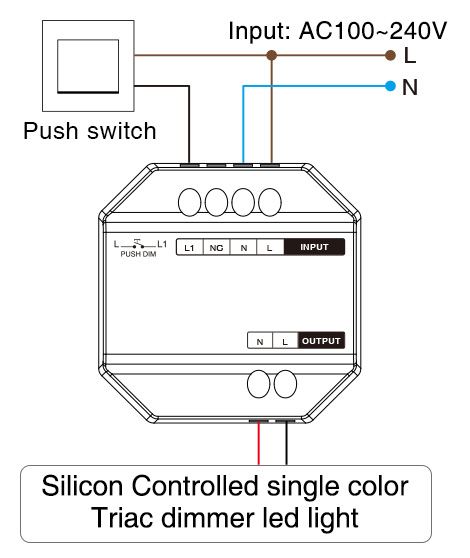

Connection Diagram

Installation Diagram

Supports standard bottom boxes with depth above 50mm

Application Scenarios

Product Parameters

Product Name

AC Triac Dimmer (2.4G+Push)

Model No.

TRI-C1

Input Voltage

100-240V~ 50/60Hz

Output Voltage

100-240V~

Output Current

Max 1.36A

Output Power

150W @110V
300W @220V

Dim Method

RF wireless dimming
Push dimming

2.4G RF Control Distance

30m

IP Rate

Working Temperature

-10~40°C
