Home » Products » CL1-P60V12 60W Single Color Dimming LED Driver (2.4G)

CL1-P60V12
60W Single Color Dimming LED Driver (2.4G)

• Built-in power adapter
• 2.4G RF Remote controllable
• Brightness stepless dimming
• Output Voltage DC12V

Available Downloads:
Manual

Model No.: CL1-P60V12 Category:

Out of stock

60W Single Color Dimming LED Driver (2.4G)
Product Parameters
Product Name

60W Single Color Dimming LED Driver (2.4G)

Model No.

CL1-P60V12

Input Voltage

100-240V~ 50/60Hz

Output Current

Max 5A

RF

2.4GHz

Control Distance

30m

IP Rate

Temperature

ta:40℃
tc:85℃



2.4GHz RF Remote control (Control distance 30m)
Brightness adjustable, smooth transition without flicker

Compatible with the following remotes

Signal transmitting

One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.

Lighting Fixtures
Signal transmitting
Distance 30m
Lighting Fixtures
. . .
Support Push dimmable

Stepless dimming, without any screen flickering

One click:turn on/off lights
Long press:increase/decrease brightness (Long press and release, then long press to change)

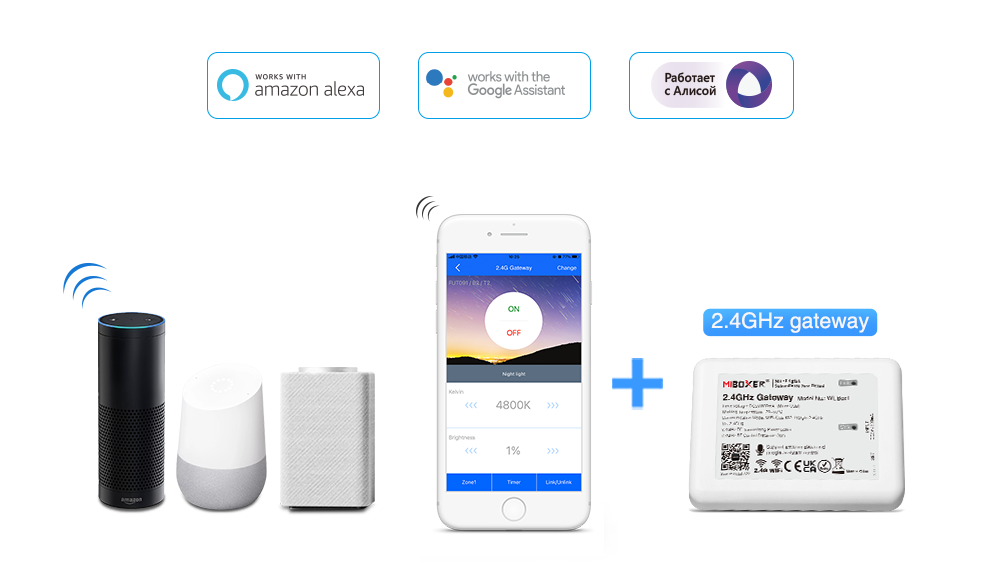

Support smartphone app control and third party voice control (It need 2.4GHz gateway)
Product Name

60W Single Color Dimming LED Driver (2.4G)

Model No.

CL1-P60V12

Input Voltage

100-240V~ 50/60Hz

Output Current

Max 5A

RF

2.4GHz

Control Distance

30m

IP Rate

Temperature

ta:40℃
tc:85℃

User Manual
