Caratteristiche
Adopt 2.4G wireless transmission technology, low power consumption, self-organizing network, anti-interference. Relay signal transmission, meet the lighting control needs of home and commercial space.
Support 2.4G RF remote control. Widely used in home, hotel and commercial lighting.
- (Zigbee 3.0 gateway is needed)Built-in temperature detection switch, overload protection, adopt post-cut phase dimming technology
- Support minimum brightness setting
- 0~100% stepless dimming, no flicker
- Auto-forwarding: Auto-forward the remote control signal to another lamp, making the remote control distance infinite
- Support “Tuya Smart” APP control (Zigbee 3.0 gateway is needed)
- Support Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu Xiaodu, (Zigbee 3.0 gateway is needed)
Parametri

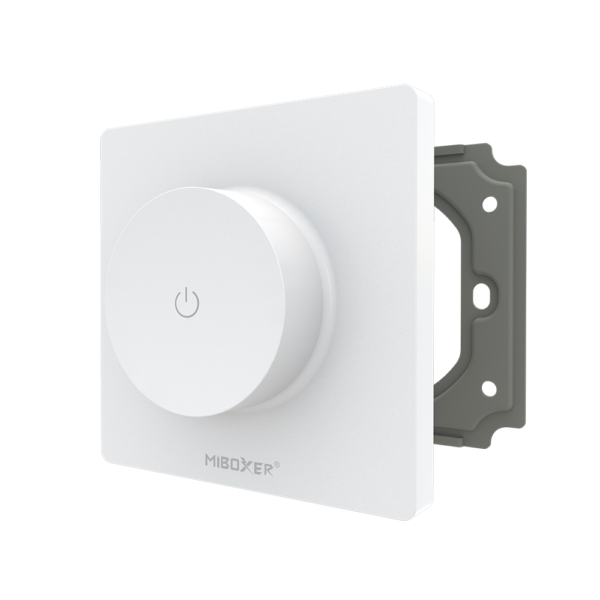

| Nome del prodotto: | Rotating Triac dimmer |
|---|---|
| Modello numero | TRI-K1ZR |
| Tensione di ingresso: | 100-240V~ 50/60Hz |
| Corrente di uscita: | Massimo 1,36 A |
| Potenza di uscita: | 150W @110V; 300W a 220V |
| Segnale di controllo: | Zigbee 3.0+2.4GHz RF |
| Distanza di controllo: | Zigbee： 50M（Open area）/ 2.4G RF ： 30M |
| Tasso IP: | IP20 |
|---|---|
| Temperatura di lavoro: | -10~40°C |
| Norma EMC (EMC): | ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.3.2 |
| Norma di sicurezza (LVD): | EN 61347-2-11: 2001+A1: 2019
EN 61347-1: 2015+A1:2021 EN 62493: 2015+A1:2022 |
| Apparecchiatura radio (RED): | ETSI EN 300 440 V2.2.1 |
| Certificazione: | CE, compatibilità elettromagnetica, LVD, ROSSO |

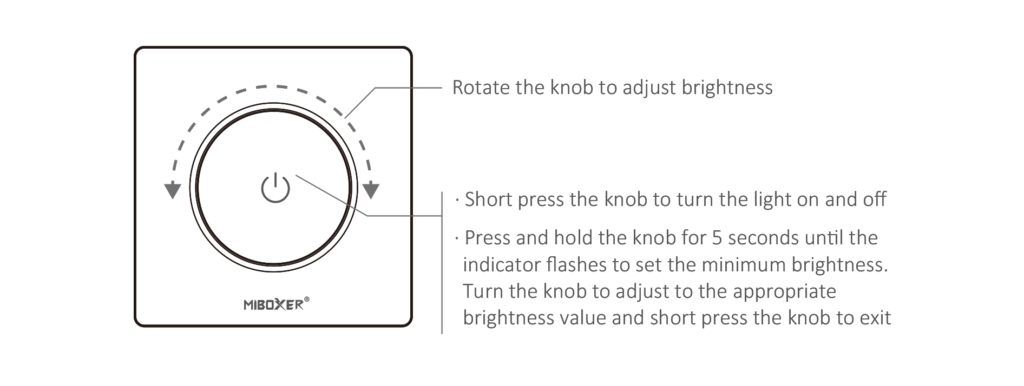

Istruzioni
Supporta il controllo intelligente dell'app Tuya (è necessario il gateway Zigbee 3.0)
Supporta il controllo vocale di terze parti (è necessario il gateway Zigbee 3.0)
Può accedere a Philips Hue, IKEA TRÅDFRI, AMAZON Echo Plus (2a generazione), Echo (4a generazione), Echo Studio, Echo show (2.Gen) gateway zigbee standard 3.0
Schema di collegamento
