Product Description

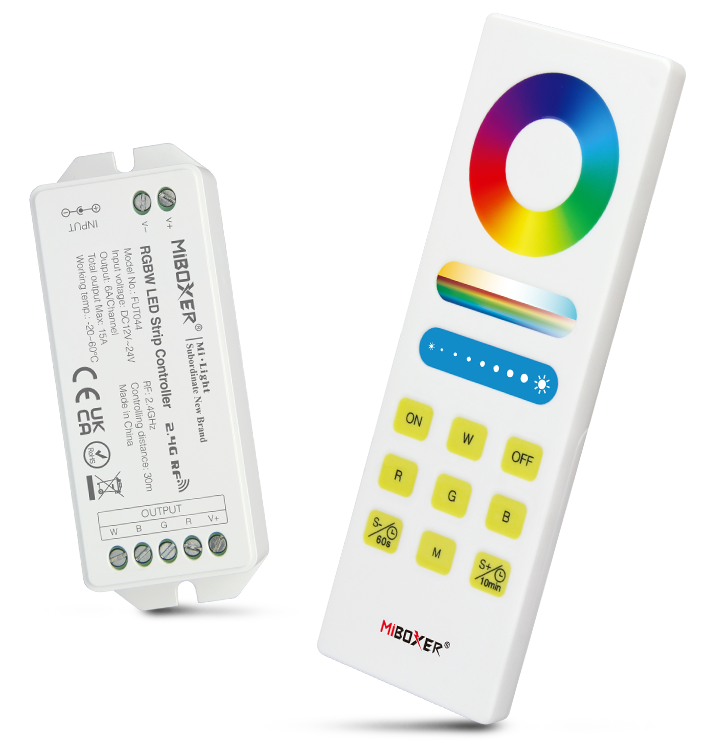

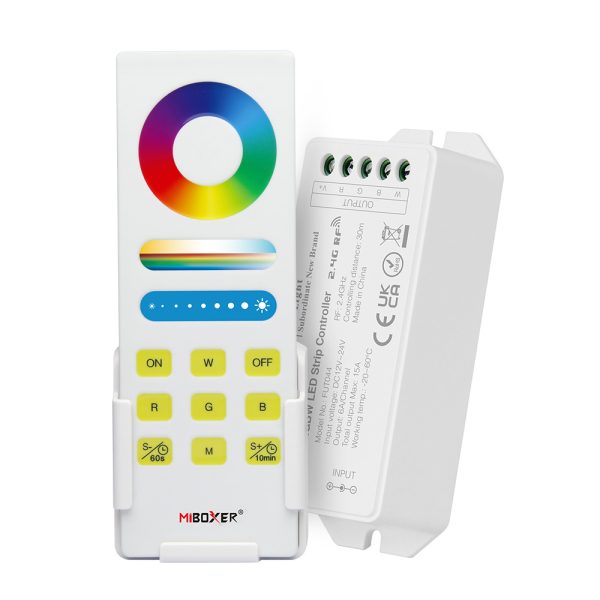

RGBW LED Controller Kits (2.4GHz)
16 Millions of colors to choose, Brightness and saturation controllable
Product Parameters

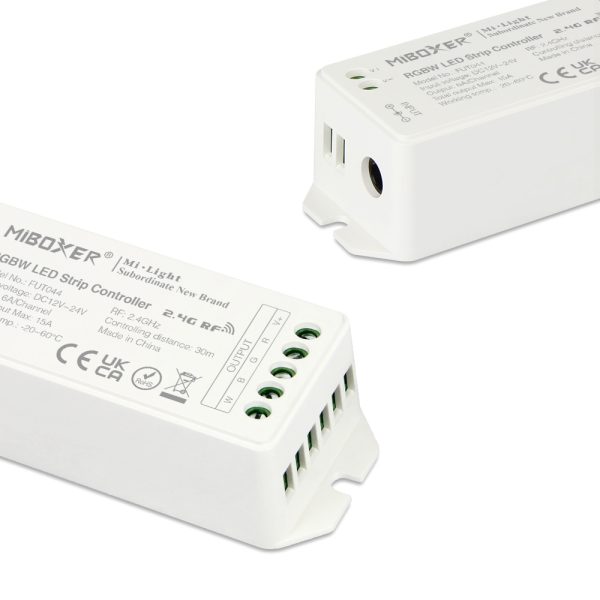

LED Controller >
| Product Name | RGBW LED Strip Controller (2.4GHz) |
|---|---|
| Model No. | FUT044 |
| Input Voltage | DC12~24V |
| Output | 6A/Channel |
| Total Output | Max 15A |
| RF | 2.4GHz |
| Control Distance | 30m |
| IP Rate | – |
| Working Temperature | -10~40°C |
| Output connection | Common anode |
Remote >
| Product Name | RGB+CCT Full Touch Remote |
|---|---|
| Model No. | FUT088 |
| Working Voltage | 3V (AAA * 2PCS) |
| Standby Power Consumption | 20μA |
| Transmitting Power | 6dBm |
| RF | 2.4GHz |
| Control Distance | 30m |
| Transmission Frequency | 2400-2483.5MHz |
| Modulation Method | GFSK |
| Working Temperature | -20~60°C |
16 Millions of colors to choose
Saturation adjustable, meet the diversified lighting
Brightness adjustable, smooth transition without flicker
PWM high frequency / low frequency
High frequency / low frequency can be switched
Signal transmitting
One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.
Modes synchronization
Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.
Lighting Fixtures
Signal transmitting & Modes synchronization
Distance 30m
Lighting Fixtures
. . .
Support smartphone app control and third party voice control (It need 2.4GHz gateway)
Application Scenarios
