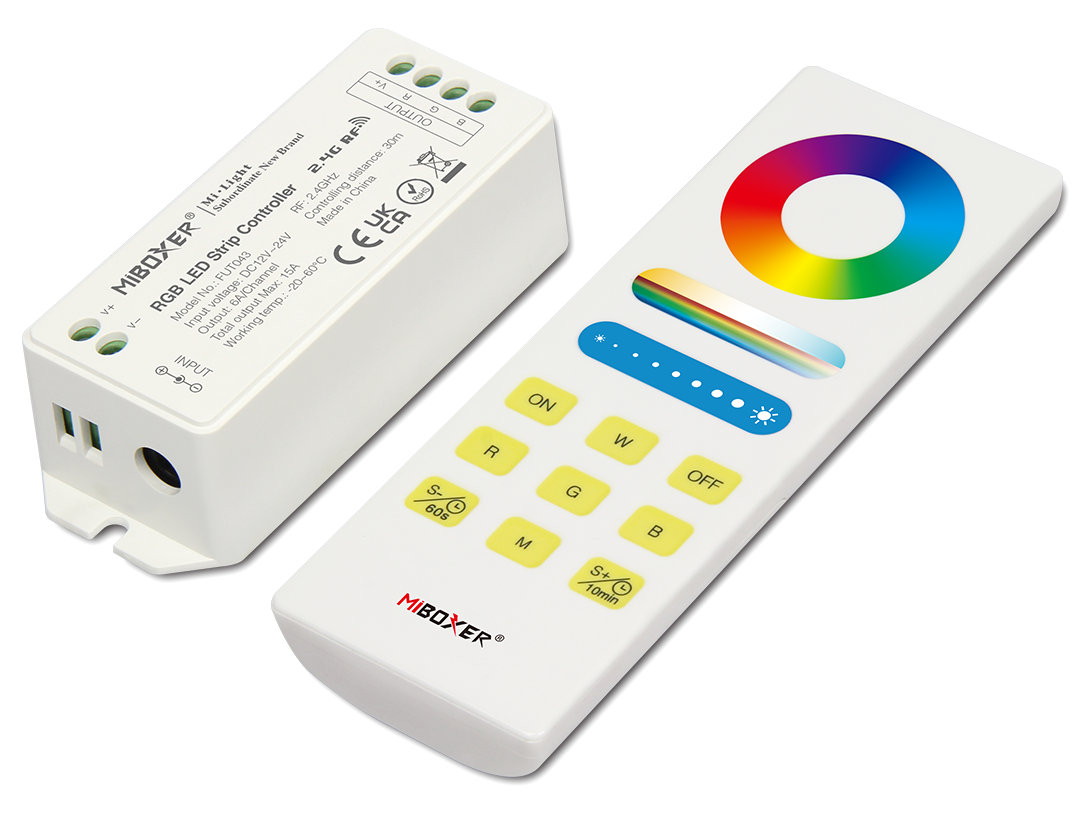

FUT043A RGB LED Controller Kits (2.4GHz)

Product Description

RGB LED Controller Kits (2.4GHz)

16 Millions of colors to choose, Mix RGB light to adjust color temperature, Brightness and saturation controllable

Product Parameters

LED Controller >

Product Name	RGB LED Strip Controller (2.4GHz)
Model No.	FUT043
Input Voltage	DC12~24V
Output	6A/Channel
Total Output	Max 15A
RF	2.4GHz
Control Distance	30m
IP Rate	–
Working Temperature	-10~40°C
Output connection	Common anode

Remote >

Product Name	RGB+CCT Full Touch Remote
Model No.	FUT088
Working Voltage	3V (AAA * 2PCS)
Standby Power Consumption	20μA
Transmitting Power	6dBm
RF	2.4GHz
Control Distance	30m
Transmission Frequency	2400-2483.5MHz
Modulation Method	GFSK
Working Temperature	-20~60°C

16 Millions of colors to choose

Saturation adjustable, meet the diversified lighting

Mix RGB light to adjust color temperature

Brightness adjustable, smooth transition without flicker

PWM high frequency / low frequency

High frequency / low frequency can be switched

Signal transmitting

One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.

Modes synchronization

Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.
