MG2-20N-ZL
20W Dual White Magnetic Grille Light (Zigbee 3.0)

• Product follow zigbee 3.0 standard protocol
• Color temperature and brightness adjustable
• Contrl distance: 50m (open area)
• Powered by rail, strong magnetism

Available Downloads:
Manual

SKU MG2-20N-ZL Categories , ,
MG2-20N-ZL
20W Dual White Magnetic Grille Light (Zigbee 3.0)

Product Description

Product Parameters
Product Name

20W Dual White Magnetic Grille Light (Zigbee 3.0)

Model No.

MG2-20N-ZL

Input Voltage

DC48V

Power

20W

PF

CRI

>80

Color Temperature

2700K~6500K

Luminous Flux

1530LM

Luminous Efficiency

75LM/W

Beam Angle

24°

Communication Protocol

Zigbee 3.0

Control Distance

50m (open area)

IP Rate

Not waterproof

Working Temperature

-10~40°C

Wireless Technology

Zigbee 802.15.4

Zigbee Wireless Frequency

2.400-2.480GHz

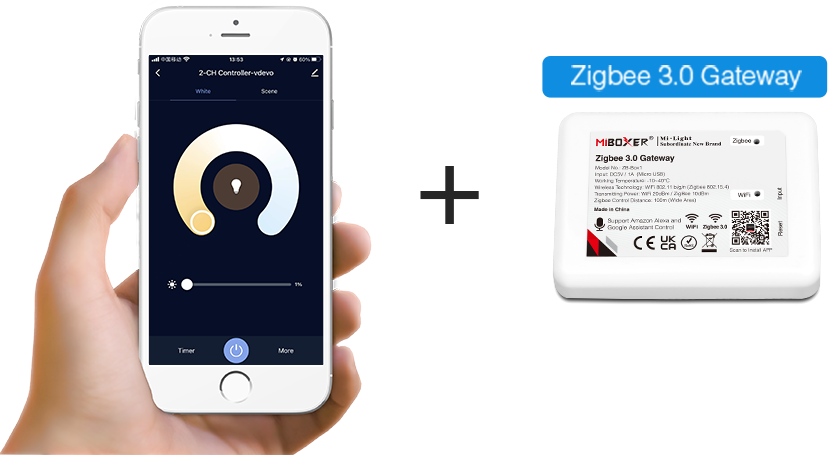

Zigbee 3.0 Remote control
(Zigbee 3.0 gateway is needed)

2700K~6500K
Color temperature adjustable

Brightness adjustable
smooth transition without flicker

[Tuya Smart] APP control
Need to match Zigbee 3.0 gateway to experience more functions (Zigbee 3.0 gateway needs to be purchased separately)

Scene customization​

Sleep/ wake up plan

Timing setting

Tap-to-Run & automation

Biorhythm

Do not disturb mode

Device sharing

Support third party voice control
Need to be equipped with Zigbee 3.0 gateway(needs to be purchased separately), which can control ON/OFF, brightness, colors, etc. through voice.
It can enter into Philips Hue, IKEA TRADFRI, Amazon ECHO Plus ( 2nd Gen), ECHO (4th Gen), ECHO Studio, ECHO Show (2. Gen) standard Zigbee 3.0 gateway.

Strong magnetism
Powered by rail

Moving randomly on the rail

Product Parameters

Product Name

20W Dual White Magnetic Grille Light (Zigbee 3.0)

Model No.

MG2-20N-ZL

Input Voltage

DC48V

Power

20W

PF

CRI

>80

Color Temperature

2700K~6500K

Luminous Flux

1530LM

Luminous Efficiency

75LM/W

Beam Angle

24°

Communication Protocol

Zigbee 3.0

Control Distance

50m (open area)

IP Rate

Not waterproof

Working Temperature

-10~40°C

Wireless Technology

Zigbee 802.15.4

Zigbee Wireless Frequency

2.400-2.480GHz
