Merkmale
Adopt 2.4G wireless transmission technology, low power consumption, self-organizing network, anti-interference. Relay signal transmission, meet the lighting control needs of home and commercial space.
Support 2.4G RF remote control. Widely used in home, hotel and commercial lighting.
- Built-in temperature detection switch, overload protection, adopt post-cut phase dimming technology
- Support minimum brightness setting
- 0~100% stepless dimming, no flicker
- Auto-forwarding: Auto-forward the remote control signal to another lamp, making the remote control distance infinite
- Support “Tuya Smart” APP control (2.4G gateway is needed)
- Support Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu Xiaodu, (2.4G gateway is needed)
Parameter
| Produktname: | Rotating Triac dimmer |
|---|---|
| Modell Nr.: | TRI-K1WR |
| Eingangsspannung: | 100-240V~ 50/60Hz |
| Ausgangsstrom: | Maximal 1,36 A |
| Ausgangsleistung: | 150W @110V; 300 W bei 220 V |
| Steuersignal: | WiFi+2.4GHz RF |
| Kontrolldistanz: | 2.4GHz RF: 30m |
| IP-Rate: | IP20 |
|---|---|
| Arbeitstemperatur: | -10~40°C |
| EMV-Standard (EMC): | ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.3.2 |
| Sicherheitsstandard (LVD): | EN 61347-2-11: 2001+A1: 2019
EN 61347-1: 2015+A1:2021 EN 62493: 2015+A1:2022 |
| Funkgerät (RED): | ETSI EN 300 440 V2.2.1 |
| Zertifizierung: | CE, EMV, LVD, ROT |
Anweisungen
Unterstützt die Tuya-Smart-App-Steuerung, kein 2,4-G-Gateway erforderlich
Unterstützt die Sprachsteuerung von Drittanbietern

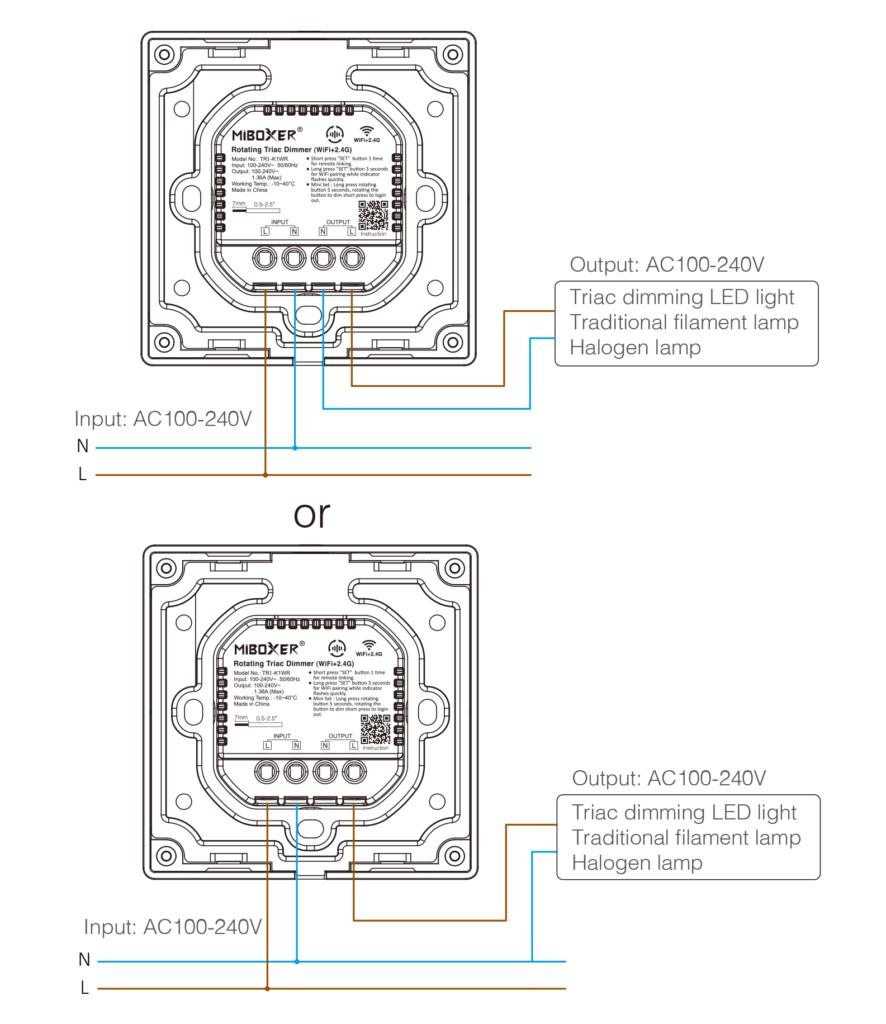

Schaltplan
