Merkmale
Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameter
- 16 million colors for selection, dimmable for rgb& cct& brightness
- Working with master controller to adjust rgb& cct& brightness& saturation
- Edelstahl 304
- IP68 waterproof
| Produktname: | RGB+CCT LED Underground Light |
|---|---|
| Modell Nr.: | PLC-RD3 |
| Eingangsspannung: | DC24V |
| Power： | 9W（R, G, B: 3W, CW: 7W, WW: 7W） |
| CRI: | ＞80 |
| Farbtemperatur: | 2700K ~ 6500K |
| Lichtstrom: | 610LM |
| Lichteffizienz: | 95LM/W |
| Abstrahlwinkel: | 15° |
| IP-Rate: | IP68 |
|---|---|
| Arbeitstemperatur: | -10~40℃ |
| WIFI Standard： | IEEE 802.11b/g/n 2,4 GHz |
| EMV-Standard (EMC): | ETSI EN301 489-1 Version 2.2.3 (2019-11) ETSI EN 301 489-3 v 2.3.2 (2023-01) |
| Sicherheitsstandard (LVD): | EN 61347-1:2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Funkgerät (RED): | ETSI EN 300 440 V2.2.1 |
| Zertifizierung: | CE, EMV, LVD, ROT |

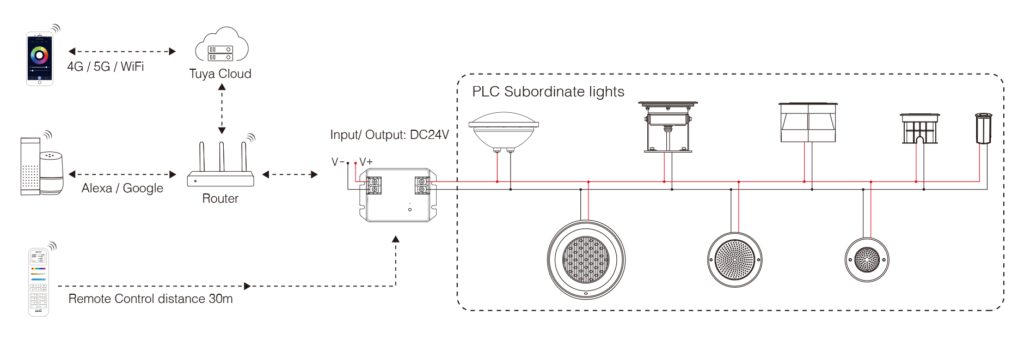

Schaltplan

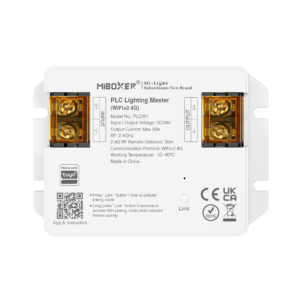

Need to work with master controller
