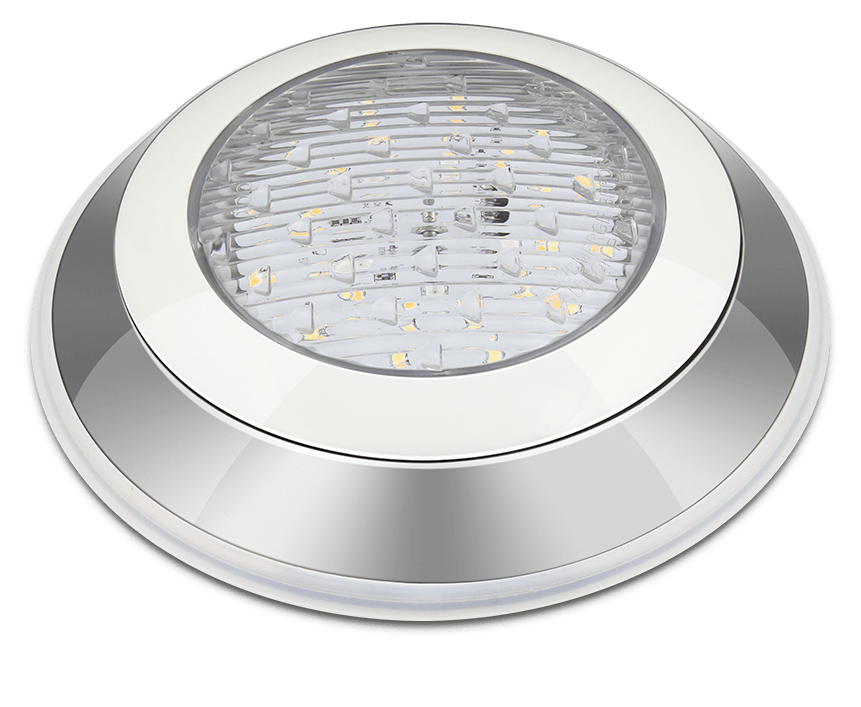

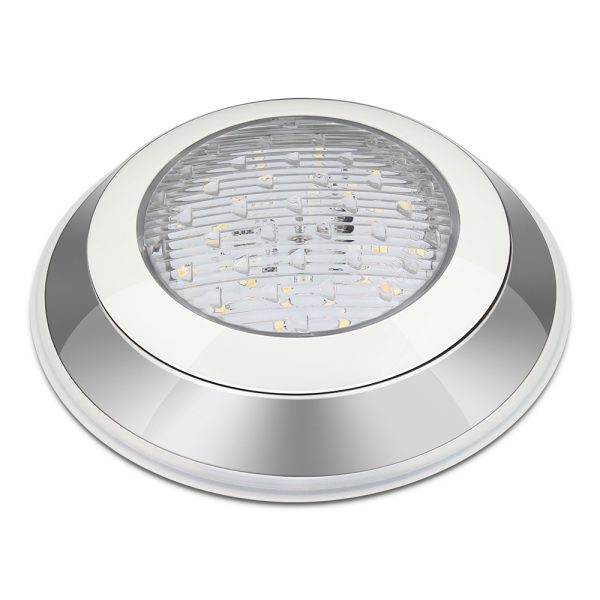

SYS-RW1 15W RGB+CCT LED Underwater Light (Subordinate Lamp)

Product Description

15W RGB+CCT LED Underwater Light (Subordinate Lamp)

Wireless Remote Controlling by connecting the “Host Controller”

Product Parameters

Product Name	15W RGB+CCT LED Underwater Light (Subordinate Lamp)
Model No.	SYS-RW1
Input Voltage	DC24V
Power	15W
PF	–
CRI	>80
Color Temperature	2700K~6500K
Luminous Flux	1100LM
Luminous Efficiency	72LM/W
Beam Angle	160°
Communication Protocol	SYS Host Control
IP Rate	IP68
Working Temperature	-20~45℃

This product has to be connected to "Host Controller" to fulfill the remote controlling

Waterproof rate IP68

Silicone rubber sealing make sure the excellent waterproofness and safety usage

Stalinite housing

316 stainless steel material Not easy to fade and sunscreen

High quality PC cover

Strong hardness, high lighting transmitting rate; Wide illumination distance

High lumen LED Chips

High lumen LED chips; Low power consumption and luminance decrease; Bright color and high brightness

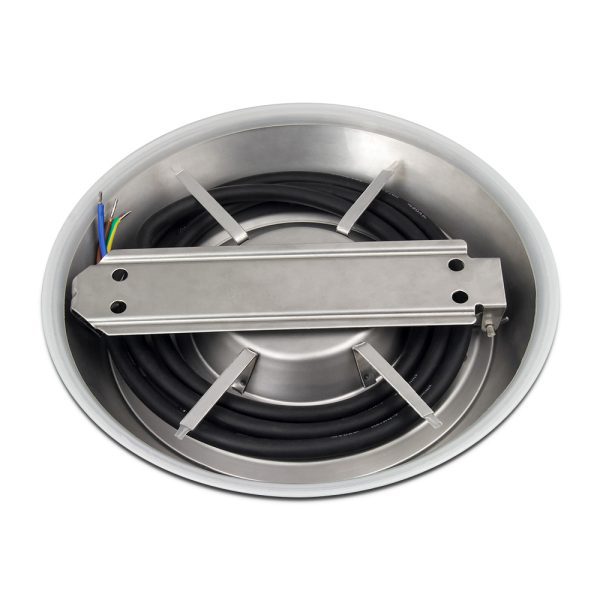

Built-up designing

316 stainless steel materials; Built-up designing; Easy-installation

Silicone rubber sealing ring

Fully waterproofness make sure the lighting lifespan

Connection Diagram

Note: When using “Host controller”, you need to add “1-channel signal amplifier” for below 3 situations.
1. Connecting over 50pcs lights
2. Connected cable length over 300m
3. Output power over 360W

Product Parameters

Product Name	15W RGB+CCT LED Underwater Light (Subordinate Lamp)
Model No.	SYS-RW1
Input Voltage	DC24V
Power	15W
PF	–
CRI	>80
Color Temperature	2700K~6500K
Luminous Flux	1100LM
Luminous Efficiency	72LM/W
Beam Angle	160°
Communication Protocol	SYS Host Control
IP Rate	IP68
Working Temperature	-20~45℃
